當前位置：首頁 - 產品展示 - 濾波器 - 雙工器
時間：2020/10/23 點擊量：145

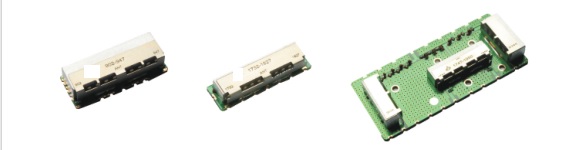

介質雙工器（小基站、直放站、微波通訊、室內分布系統、GSM、WCDMA等）
Part Number | F0 | BW | IL | Ripple | VSWR | Rejection Band | Power | Size |
DDP0810R827-872P015-015 | 827 | 15 | 2.5 | 1 | 1.5 | 50@865～880 | 10 | 42×17.5×9.5 |
872 | 15 | 2.5 | 1 | 1.5 | 50@820～835 | |||
DDP0810R830-875P010-010 | 830 | 10 | 2.5 | 1 | 1.3 | 50@870～880 | 10 | 42×17.5×9.5 |
875 | 10 | 2.5 | 1 | 1.3 | 50@825～835 | |||
DDP0810R836-881P025-025 | 836 | 25 | 2.5 | 1.5 | 1.5 | 50@869～894 | 10 | 42×17.5×9.5 |
881 | 25 | 2.5 | 1.5 | 1.5 | 50@824～849 | |||
DDP0410R836-881P025-025 | 836 | 25 | 4 | 2 | 1.5 | 45@869～894 | 5 | 30×12×5.5 |
881 | 25 | 4 | 2 | 1.5 | 45@824～849 | |||
DDP0810R900-945P030-030 | 900 | 30 | 3 | 1.5 | 1.5 | 45@930～955 | 10 | 42×17.5×9.5 |
945 | 30 | 3 | 1.5 | 1.5 | 45@885～915 | |||
DDP0410R900-945P030-030 | 900 | 30 | 4 | 2 | 1.6 | 45@930～955 | 5 | 30×12×5.5 |
945 | 30 | 4 | 2 | 1.6 | 45@885～915 | |||
DDP0810R902-947P024-024 | 902 | 24 | 2.5 | 1.5 | 1.5 | 50@925～959 | 10 | 42×17.5×9.5 |
947 | 24 | 2.5 | 1.5 | 1.5 | 50@890～914 | |||
DDP0410R902-947P024-024 | 902 | 24 | 4 | 2 | 1.5 | 50@925～959 | 5 | 30×12×5.5 |
947 | 24 | 4 | 2 | 1.5 | 50@890～914 | |||
DDP0810R912-957P006-006 | 912 | 6 | 2 | 1 | 1.3 | 55@954～960 | 10 | 42×17.5×9.5 |
957 | 6 | 2 | 1 | 1.3 | 55@899～905 | |||
DDP0410R912-957P006-006 | 912 | 6 | 2.5 | 1 | 1.5 | 50@954～960 | 5 | 30×12×5.5 |
957 | 6 | 2.5 | 1 | 1.5 | 50@899～905 | |||
DDP0810R1732-1827P045-045 | 1732 | 45 | 2.5 | 1 | 1.5 | 50@1805～1850 | 10 | 42×17.5×9.5 |
1827 | 45 | 2.5 | 1 | 1.5 | 50@1710～1755 | |||
DDP0410R1732-1827P045-045 | 1732 | 45 | 3 | 1.5 | 1.5 | 50@1805～1850 | 5 | 30×12×5.5 |
1827 | 45 | 3 | 1.5 | 1.5 | 50@1710～1755 | |||
DDP0410R1744-1844P069-069 | 1744 | 69 | 5 | 3.5 | 1.5 | 50@1811～1880 | 5 | 30×8.5×5.5 |
1845 | 69 | 5 | 3.5 | 1.5 | 50@1710～1779 | |||
DDP1210R1747-1842P075-075 | 1747 | 75 | 2.8 | 2 | 1.5 | 45@1805～1880 | 20 | 67.3×18.3×14.5 |
1842 | 75 | 2.8 | 2 | 1.5 | 45@1710～1785 | |||
DDP0810R1747-1842P075-075 | 1747 | 75 | 3.2 | 2.3 | 1.6 | 40@1805～1880 | 10 | 42×17.5×9.5 |
1842 | 75 | 3.2 | 2.3 | 1.6 | 40@1710～1785 | |||
DDP0410R1747-1842P075-075 | 1747 | 75 | 4 | 3 | 1.8 | 30@1805～1880 | 5 | 30×8.8×5.5 |
1842 | 75 | 4 | 3 | 1.8 | 30@1710～1785 | |||
DDP0810R1880-1960P060-060 | 1880 | 60 | 3 | 2.2 | 1.5 | 40@1930～1990 | 10 | 42×17.5×9.5 |
1960 | 60 | 3 | 2.2 | 1.5 | 40@1850～1880 | |||
DDP0410R1880-1960P060-060 | 1880 | 60 | 4 | 3 | 1.8 | 30@1930～1990 | 5 | 30×8.8×5.5 |
1960 | 60 | 4 | 3 | 1.8 | 30@1850～1880 | |||
DDP0810R1947-2137P015-015 | 1947 | 15 | 2 | 1 | 1.3 | 55@2130～2145 | 10 | 42×17.5×9.5 |
2137 | 15 | 2 | 1 | 1.3 | 55@1940～1955 | |||
DDP0810R1950-2140P060-060 | 1950 | 60 | 2 | 1.5 | 1.3 | 55@2110～2170 | 10 | 42×17.5×9.5 |
2140 | 60 | 2 | 1.5 | 1.3 | 55@1920～1980 |
